Query blockchain data with GraphQL

We store blockchain data decoded and normalized in tables in a relational database. Then make this data available for querying by GraphQL and SQL.

GraphQL lets you combine queries and retrieve records related and not, all by one query, saving you round trips getting them piece by piece like in REST APIs. It is also easier to construct than SQL and lends itself well to be used in API calls as it returns json. A developer can craft a GraphQL query in the web console and once it's perfected can send the same query to our http API endpoint.

Queries with SQL can be more sophisticated and are used for grouping and joining records which would not be possible with GraphQL. These queries can then be wrapped into GraphQL by making them into persistent queries as views.

Let's look at the basics of GraphQL queries for blockchain data.

Explorer

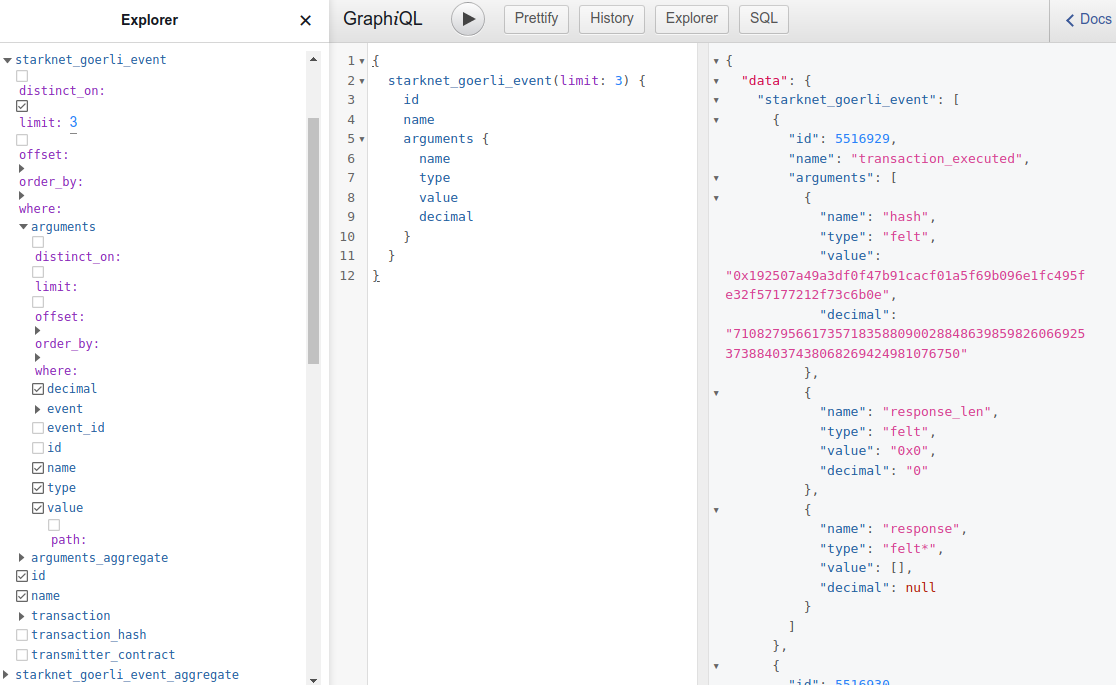

While you can write queries by hand you may find the GraphQL schema Explorer useful in the beginning. Open the pane on the left to put together a GraphQL query by selecting entities to return with their fields, and by adding filter, limit and sort parameters.

Navigate to find entities you're interested in, like events in StarkNet test chain goerli. Open node starknet_goerli_event in the Explorer's tree and select the fields you want to retrieve like name. Smart contracts emit events with some payload that we parse into arguments, so select these in the tree together with their fields value and others.

Filter

There are millions of events in the database and you don't want to retrieve all of them, so let's narrow down the search by adding where clause filters and limit the number of records returned.

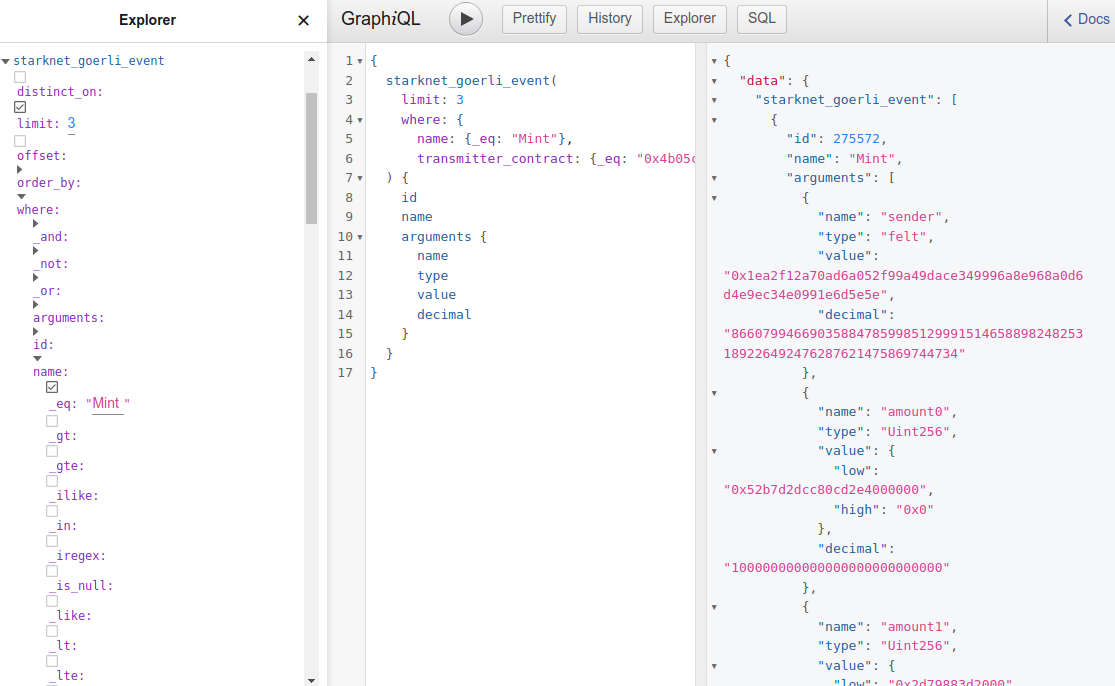

Open the where node in the tree under starknet_goerli_event to add filter and limit conditions:

• event name field is equal _eq to Mint
• smart contract address that emitted the event _eq to 0x4b0...
• limit results to 3.

One of the features of GraphQL is the ability to combine many entities in one query. To illustrate it here let's add a query for all DEPLOY transactions in block 100000, together with their inputs. Note here that you can filter entities at all levels: the block by its block_number and transactions within the block by their type.

If you paste this query into the middle editor pane it will open the corresponding nodes in the Explorer: the panes work nicely together.

{
  starknet_goerli_event(where: {
    name: {_eq: "Mint"},
    transmitter_contract: {_eq: "0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733"}
    },
    limit: 3) {
    name
    arguments {
      name
      type
      value
      decimal
    }
    transaction_hash
  }
  starknet_goerli_block(where: {
    block_number: {_eq: 100000}}) {
    transactions(where: {type: {_eq: "DEPLOY"}}) {
      function
      entry_point_selector
      inputs {
        name
        type
        value
      }
    }
  }
}

You can get query results directly from our http endpoint. Send the query you tried in the web console as an http POST parameter with curl:

curl https://hasura.prod.summary.dev/v1/graphql --data-raw '{"query":"{starknet_goerli_event(where: {name: {_eq: \"Mint\"}, transmitter_contract: {_eq: \"0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733\"}}, limit: 3) { name arguments { name type value decimal } transaction_hash} starknet_goerli_block(where: {block_number: {_eq: 100000}}) {transactions(where: {type: {_eq: \"DEPLOY\"}}) {function entry_point_selector inputs {name type value}}}}"}'

More on this in the section on our API.

Input and event data decoded with ABI

Blockchain APIs return transaction inputs and event payload in bulk arrays of binary data which are hard to interpret. We decode these for you with smart contract ABIs. For proxy contracts we attempt to find the implementation contract's ABI to parse the data correctly.

Take a look at the transactions and events of block 100000 parsed and decoded. Try this query (which omits most fields for brevity).

{
  starknet_goerli_block(where: {block_number: {_eq: 100000}}) {
    transactions {
      function
      entry_point_selector
      inputs {
        name
        type
        value
      }
      events {
        name
        transmitter_contract
        arguments {
          name
          type
          value
          decimal
        }
      }
    }
  }
}

Transaction function and its inputs are decoded using the contract's ABI. See smart contract function name decoded as execute together with its inputs: to as type felt, calldata as a three element felt array.

{
"function": "execute",
"entry_point_selector": "0x240060cdb34fcc260f41eac7474ee1d7c80b7e3607daff9ac67c7ea2ebb1c44",
"inputs": [
  {
    "name": "to",
    "type": "felt",
    "value": "0x4bc8ac16658025bff4a3bd0760e84fcf075417a4c55c6fae716efdd8f1ed26c"
  },
  {
    "name": "selector",
    "type": "felt",
    "value": "0x219209e083275171774dab1df80982e9df2096516f06319c5c6d71ae0a8480c"
  },
  {
    "name": "calldata",
    "type": "felt[3]",
    "value": [
      "0x263acca23357479031157e30053fe10598077f24f427ac1b1de85487f5cd124",
      "0x204fce5e3e25026110000000",
      "0x0"
    ]
  },
  {
    "name": "nonce",
    "type": "felt",
    "value": "0x64"
  }
]
}

Events are also decoded: see Transfer event and its argument tokenId as struct Uint256 with low and high hex, also converted into a decimal number. Converting from felt and Uint256 into decimal is useful for summing up and comparing values.

{
"events": [
  {
    "name": "Transfer",
    "transmitter_contract": "0x4e34321e0bce0e4ff8ff0bcb3a9a030d423bca29a9d99cbcdd60edb9a2bf03a",
    "arguments": [
      {
        "name": "from_",
        "type": "felt",
        "value": "0x0",
        "decimal": "0"
      },
      {
        "name": "to",
        "type": "felt",
        "value": "0x1778c6596d715a8613d0abcbe4fc08c052d208dce3b43eeb6b4dc24ddd62ed9",
        "decimal": "663536632620382607614490239145922341009321511960837718021901264100395462361"
      },
      {
        "name": "tokenId",
        "type": "Uint256",
        "value": {
          "low": "0x3d5b",
          "high": "0x0"
        },
        "decimal": "15707"
      }
    ]
  }
]
}

Let's get the raw block for comparison. Paste this into the GraphQL query window and you'll see raw block 100000 as we received it from the blockchain node API, with its transaction calldata and event payload data undecoded.

{
  starknet_goerli_raw_block_by_pk(block_number: 100000) {
    raw
  }
}

The raw block has transaction inputs as calldata in a bulk array, like in this excerpt.

{
"type": "INVOKE_FUNCTION",
"max_fee": "0x0",
"calldata": [
  "0x4bc8ac16658025bff4a3bd0760e84fcf075417a4c55c6fae716efdd8f1ed26c",
  "0x219209e083275171774dab1df80982e9df2096516f06319c5c6d71ae0a8480c",
  "0x3",
  "0x263acca23357479031157e30053fe10598077f24f427ac1b1de85487f5cd124",
  "0x204fce5e3e25026110000000",
  "0x0",
  "0x64"
]
}

Event payload data is in bulk as well.

{
"events": [
  {
    "data": [
      "0x0",
      "0x1778c6596d715a8613d0abcbe4fc08c052d208dce3b43eeb6b4dc24ddd62ed9",
      "0x3d5b",
      "0x0"
    ],
    "keys": [
      "0x99cd8bde557814842a3121e8ddfd433a539b8c9f14bf31ebf108d12e6196e9"
    ],
    "from_address": "0x4e34321e0bce0e4ff8ff0bcb3a9a030d423bca29a9d99cbcdd60edb9a2bf03a"
  }
]
}

Query for your contract's events

You are probably interested not in whole blocks but in events emitted by your own contract. Let's see how we can search with this query for Mint events of contract 0x4b0..., limited to one result for brevity.

{
  starknet_goerli_event(where:
    {
        name: {_eq: "Mint"},
        transmitter_contract: {_eq: "0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733"}
    },
    limit: 1) {
    name
    arguments {
      name
      type
      value
      decimal
    }
    transaction_hash
  }
}

The query returns your event with its payload arguments decoded.

{
  "data": {
    "event": [
      {
        "name": "Mint",
        "arguments": [
          {
            "name": "sender",
            "type": "felt",
            "value": "0x1ea2f12a70ad6a052f99a49dace349996a8e968a0d6d4e9ec34e0991e6d5e5e",
            "decimal": "866079946690358847859985129991514658898248253189226492476287621475869744734"
          },
          {
            "name": "amount0",
            "type": "Uint256",
            "value": {
              "low": "0x52b7d2dcc80cd2e4000000",
              "high": "0x0"
            },
            "decimal": "100000000000000000000000000"
          },
          {
            "name": "amount1",
            "type": "Uint256",
            "value": {
              "low": "0x2d79883d2000",
              "high": "0x0"
            },
            "decimal": "50000000000000"
          }
        ],
        "transaction_hash": "0x521e56da1f33412f2f5e81dc585683c47b19783995aa3ebdcd84f5739cea489"
      }
    ]
  }
}

You can send the same query to the http API endpoint; here we omitted the limit to get all Mint events. Such queries can be automated and feed your web and backend applications.

curl https://hasura.prod.summary.dev/v1/graphql --data-raw '{"query":"query { starknet_goerli_event(where: {name: {_eq: \"Mint\"}, transmitter_contract: {_eq: \"0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733\"}}) { name arguments { name type value decimal } transaction_hash }}"}'

Naturally, you can add as many conditions to where clause as needed to select the events you're interested in.

This query returns 10 Mint events as starknet_goerli_event entities which have arguments with amount1 values less than 10. See the where clause selecting events with payload arguments with name _eq to amount1 and its value in decimal less than _lt 10.

query event_mint_argument_amount1_lte_10 {
  starknet_goerli_event(where: {
      arguments: {
        name: {_eq: "amount1"},
        decimal: {_lt: "10"}
      },
      name: {_eq: "Mint"},
      transmitter_contract: {_eq: "0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733"}
    },
    limit: 10) {
    name
    arguments {
      name
      type
      value
      decimal
    }
    transaction_hash
  }
}

The following query accomplishes the same, but from the other end: it requests all arguments as starknet_goerli_argument entities, satisfying conditions amount1 and < 10, and whose owning event is Mint of contract 0x4b0.... The query returns results as arguments together with their event, transaction and its block number.

query argument_amount1_lte_10_event_mint {
  starknet_goerli_argument(where: {
      decimal: {_lt: "10"},
      name: {_eq: "amount1"},
      event: {name: {_eq: "Mint"}, transmitter_contract: {_eq: "0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733"}}
    },
    limit: 10) {
    decimal
    name
    type
    value
    event {
      transaction_hash
      transaction {
        block_number
      }
    }
  }
}

Another example query requests 10 Transfer events with a given destination address 0x455... specified by the to event argument. Note these events come from various contracts as seen in different transmitter_contract fields, and you can narrow down further if needed.

query event_transfer_to {
  starknet_goerli_event(where: {name: {_eq: "Transfer"},
    arguments: {name: {_eq: "to"}, value: {_eq: "0x455eb02b7080a4ad5d2161cb94928acec81a4c9037b40bf106c4c797533c3e5"}}}
    limit: 10) {
    name
    arguments {
      name
      type
      value
      decimal
    }
    transaction_hash
    transmitter_contract
  }
}

Query for values in JSON payloads

Some event and transaction payload fields are atomic of type felt and are easily accessible by queries, but some are members of structs and are stored as json values.

If the data you're interested in lies in a field inside json, you can get to it by specifying a path to this field in your query.

This query searches for smart contract function input index_and_x of contract 0x579... which is defined as a struct.

{
  starknet_goerli_input(where: {name: {_eq: "index_and_x"},
    transaction: {contract_address: {_eq: "0x579f32b8090d8d789d4b907a8935a75f6de583c9d60893586e24a83d173b6d5"}}},
    limit: 1) {
    value
  }
}

The result is the value of index_and_x as json with fields index and values.

{
  "data": {
    "input": [
      {
        "value": {
          "index": "0x39103d23f38a0c91d4eebbc347a5170d00f4022cbb10bfa1def9ad49df782d6",
          "values": [
            "0x586dbbbd0ba18ce0974f88a19489cca5fcd5ce29e723ad9b7d70e2ad9998a81",
            "0x6fefcb8a0e36b801fe98d66dc1513cce456970913b77b8058fea640a69daaa9"
          ]
        }
      }
    ]
  }
}

The following query digs into json by specifying path values[1] to the second half of the tuple named values. Note the path is not part of the where clause but is applied to the returned field directly.

{
  starknet_goerli_input(where: {name: {_eq: "index_and_x"},
    transaction: {contract_address: {_eq: "0x579f32b8090d8d789d4b907a8935a75f6de583c9d60893586e24a83d173b6d5"}}}, limit: 1) {
    value(path: "values[1]")
  }
}

And returns bare y values of index_and_x:

{
  "data": {
    "input": [
      {
        "value": "0x6fefcb8a0e36b801fe98d66dc1513cce456970913b77b8058fea640a69daaa9"
      }
    ]
  }
}

Let's see what the ABI of our contract 0x579... looks like.

{
  starknet_goerli_raw_abi_by_pk(contract_address: "0x579f32b8090d8d789d4b907a8935a75f6de583c9d60893586e24a83d173b6d5") {
    raw(path: "[0]")
  }
}

The type of index_and_x input is struct IndexAndValues. See its definition in the ABI that shows how to get the second half of the tuple values(x : felt, y : felt) by path: "values[1]".

{
  "data": {
    "raw_abi_by_pk": {
      "raw": {
        "name": "IndexAndValues",
        "size": 3,
        "type": "struct",
        "members": [
          {
            "name": "index",
            "type": "felt",
            "offset": 0
          },
          {
            "name": "values",
            "type": "(x : felt, y : felt)",
            "offset": 1
          }
        ]
      }
    }
  }
}

Proxy contracts

Proxy contracts delegate transaction function calls to implementation contracts. Transaction input and event data are encoded per implementation contract's ABI. Implementation contracts change and with them changes the proxy contract's ABI.

While interpreting proxy contract calls may be challenging, the data can still be decoded, by finding the implementation contract and its ABI. This is done by calling get_implementation or a similar method of the proxy contract, or by looking at the latest Upgraded or similarly named event indicating the implementation changed.

This query requests three transactions sent to a proxy contract 0x474.... You see the first DEPLOY transaction setting the implementation contract address to 0x90a....

Let's add to the query a call to raw_abi to get ABIs for both proxy and implementation contracts, for demonstration.

{
  starknet_goerli_transaction(limit: 3, where: {contract_address: {_eq: "0x47495c732aa419dfecb43a2a78b4df926fddb251c7de0e88eab90d8a0399cd8"}}) {
    inputs {
      type
      value
      name
    }
    function
  }
  starknet_goerli_raw_abi(where: {contract_address: {_in: ["0x47495c732aa419dfecb43a2a78b4df926fddb251c7de0e88eab90d8a0399cd8", "0x90aa7a9203bff78bfb24f0753c180a33d4bad95b1f4f510b36b00993815704"]}}) {
    contract_address
    raw
  }
}

See the contract function input call_array of type CallArray is defined in the implementation, not the proxy contract's ABI.

{
"contract_address": "0x90aa7a9203bff78bfb24f0753c180a33d4bad95b1f4f510b36b00993815704",
    "raw": [
      {
        "name": "CallArray",
        "size": 4,
        "type": "struct",
        "members": [
          {
            "name": "to",
            "type": "felt",
            "offset": 0
          },
          {
            "name": "selector",
            "type": "felt",
            "offset": 1
          },
          {
            "name": "data_offset",
            "type": "felt",
            "offset": 2
          },
          {
            "name": "data_len",
            "type": "felt",
            "offset": 3
          }
        ]
      }
    ]
}

Yet call_array is still decoded properly as __execute__ function's input. See this excerpt from the query result:

{
"inputs": [
    {
    "type": "CallArray[1]",
    "value": [
      {
        "to": "0x4c5327da1f289477951750208c9f97ca0f53afcd256d4363060268750b07f92",
        "data_len": "0x3",
        "selector": "0x219209e083275171774dab1df80982e9df2096516f06319c5c6d71ae0a8480c",
        "data_offset": "0x0"
      }
    ],
    "name": "call_array"
    },
    {
    "type": "felt[3]",
    "value": [
      "0x30295374333e5b9fc34de3ef3822867eaa99af4c856ecf624d34574f8d7d8ea",
      "0xffffffffffffffffffffffffffffffff",
      "0xffffffffffffffffffffffffffffffff"
    ],
    "name": "calldata"
    },
    {
    "type": "felt",
    "value": "0x0",
    "name": "nonce"
    }
    ],
    "function": "__execute__"
}

Aggregation

By now you know how to query for all your inputs and events, but how do you interpret them: sum them up, compare or calculate?

Let's say you want to derive a number from some of your events, for example, to calculate Total Value Locked, which is a sum of arguments amount0 of all Mint events.

One approach is to query for all of the values of amount0; here we limit results to 10 for brevity.

{
  starknet_goerli_argument(where: {
      name: {_eq: "amount0"},
      event: {name: {_eq: "Mint"}, transmitter_contract: {_eq: "0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733"}}
    },
    limit: 10) {
    type
    value
    name
    decimal
  }
}

See the values as Uint256 struct and also conveniently converted into decimals so you can sum them up.

{
    "type": "Uint256",
    "value": {
      "low": "0x52b7d2dcc80cd2e4000000",
      "high": "0x0"
    },
    "name": "amount0",
    "decimal": "100000000000000000000000000"
}

You can consume this query's results by your own software and sum up the values of amount0. This is the approach of some other indexers.

But since your data is already in a relational database's table, you can run an aggregation query over the values, which sums them up and returns the final result in the same query, all with no extra coding effort.

That's why the values were converted into decimals when they were persisted: GraphQL query argument_aggregate calls a SQL query with an aggregation function sum over a numeric column. Database type numeric 78 used for the decimal column is large enough to support Uint256 and felt and arithmetic operations over them.

This query aggregates decimal values of amount0 arguments of all Mint events.

{
  starknet_goerli_argument_aggregate(where: {
      name: {_eq: "amount0"},
      event: {name: {_eq: "Mint"}, transmitter_contract: {_eq: "0x4b05cce270364e2e4bf65bde3e9429b50c97ea3443b133442f838045f41e733"}}
    }) {
    aggregate {
      sum {
        decimal
      }
      avg {
        decimal
      }
      min {
        decimal
      }
      max {
        decimal
      }
    }
  }
}

Returns the total sum (TVL) as well as results of other aggregation functions: min, max, avg.

{
  "data": {
    "argument_aggregate": {
      "aggregate": {
        "sum": {
          "decimal": "7312519852578770281612328156"
        },
        "avg": {
          "decimal": "148767543894266393001838"
        },
        "min": {
          "decimal": "25047631971864"
        },
        "max": {
          "decimal": "5000000000000000000000000000"
        }
      }
    }
  }
}
